When it comes to troubleshooting car electrical systems, mastering the art of using a multimeter is key. By understanding how to select the right settings and interpret the results accurately, you can unravel complex issues that may be affecting your vehicle’s performance. From checking battery health to pinpointing elusive shorts, a multimeter is your trusted ally in the realm of automotive diagnostics. Are you ready to elevate your electrical troubleshooting skills and unlock the secrets hidden within your car’s wiring system?
Multimeter Basics for Beginners
Are you wondering how to use a multimeter to check your car’s electrical systems efficiently?
Multimeters are essential tools for diagnosing and troubleshooting electrical issues in your vehicle. To begin, set your multimeter to the voltage setting appropriate for the system you’re testing.
When measuring voltage, always connect the red probe to the positive terminal and the black probe to the negative terminal. If you’re testing continuity, switch the multimeter to the continuity setting and connect the probes to the two points you want to check. A beep indicates a complete circuit.
For checking resistance, switch to the resistance setting and connect the probes to the component you’re testing. A high resistance reading could indicate a faulty part. Remember to always disconnect the battery before testing to avoid any accidents.
Testing Car Batteries
To test car batteries effectively, set your multimeter to the DC voltage setting appropriate for battery testing. Make sure your car is turned off before proceeding.

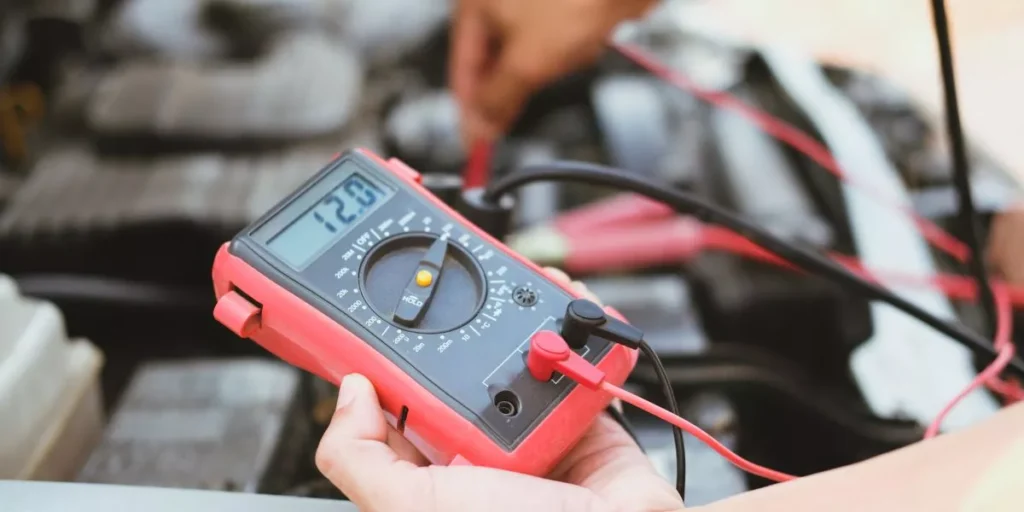

Begin by connecting the red probe to the battery’s positive terminal and the black probe to the negative terminal. The multimeter should display the voltage of the battery. A healthy battery typically reads around 12.6 volts. If the reading is significantly lower, it may indicate a weak battery that needs recharging or replacing.
Additionally, you can perform a load test by turning on the headlights for a few minutes and then rechecking the voltage. If the voltage drops below 9.6 volts, the battery may be faulty.
Regularly testing your car battery can help prevent unexpected breakdowns and ensure reliable performance. Remember to always handle car batteries with caution to avoid injury.
Diagnosing Electrical Shorts
When diagnosing electrical shorts in a car, start by disconnecting the battery to ensure safety. Electrical shorts can cause various issues like blown fuses, malfunctioning electronics, or even fires.
To diagnose a short, set your multimeter to measure resistance (ohms) and check for continuity between the positive and negative terminals of the circuit suspected of having a short. If the multimeter reads zero resistance, there’s a short in the circuit.
Next, inspect the wiring harness for any visible damage, frayed wires, or exposed metal that could be causing the short. You can also use the multimeter to check for continuity along the wiring harness to pinpoint the exact location of the short.
Once you locate the short, repair or replace the damaged wiring to resolve the issue. Remember to reconnect the battery only after all repairs are complete to avoid any safety hazards.
Troubleshooting Car Lighting Issues
When troubleshooting car lighting issues, start by checking the bulbs for any signs of damage or burnout. Ensure that the bulbs are properly seated in their sockets and that the connections are secure. If the bulbs appear to be in good condition, the next step is to inspect the fuse related to the lighting circuit. A blown fuse can often be the culprit behind malfunctioning lights.
Use a multimeter to test the fuse for continuity. If the fuse is intact, proceed to examine the wiring for any visible damage or loose connections. Corrosion or frayed wires can disrupt the flow of electricity to the lights. Additionally, consider testing the light switch to confirm that it’s functioning correctly. Sometimes a faulty switch can prevent the lights from turning on.
